1193610000 | Weidmüller
Cable gland, M32, 36 mm, Clamping range 15 to 25 mm, IP68, silver, 1193610000
Order No.: 50P7960
EAN: 4032248976621
MPN:
1193610000
VGM32-MS68 15-25 BG
Unit Price (€ / pc.)
11.5192 € *
Available in 6 Days: 125 pcs. - if ordered today

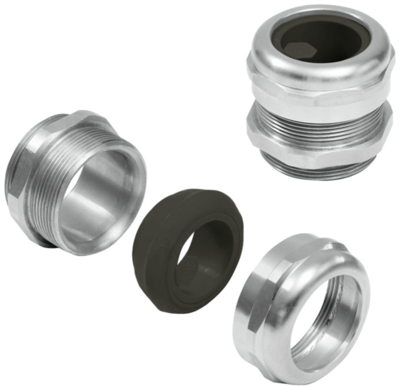

Cable gland, 1193610000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 25 mm | |
| min. clamping range | 15 mm | |
| Colour | silver | |
| spanner size | 36 mm | |
| Degree of protection (IP) | IP68 | |
| Thread size | M32 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 130 °C | |
| min. operating temperature | -40 °C | |
| Product type | cable gland | |
| Length | 40 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74122000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
