1095520000 | Weidmüller

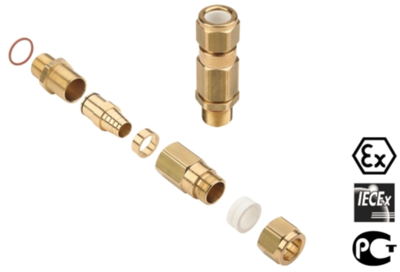

Cable gland, M63, 80 mm, Clamping range 53.8 to 61.2 mm, IP68, silver, 1095520000

Order No.: 50P5666
EAN: 4032248868308
MPN:
1095520000
KUB M63 BS O SC 1 G63
Series: KUB
1095520000 Weidmüller Cable Glands
Image may differ
Unit Price (€ / pc.)
345.9092 € *
Available in 5 Days: 3 pcs. - if ordered today
Total Price:
345.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
345.9092 €

Cable gland, 1095520000, Weidmüller

Cable gland for use in hazardous areas. It is suitable for armored and non-armored cables, for use in Ex e (increased safety) and Ex d (flameproof enclosure) applications.

Technical specifications
max. operating temperature 85 °C
max. clamping range 61.2 mm
Length 115 mm
min. clamping range 53.8 mm
Colour silver
Material brass, nickel-plated
Thread size M63
min. operating temperature -60 °C
spanner size 80 mm
Degree of protection (IP) IP68
Product type cable gland
Logistics
Customs tariff number 85389099
Country of origin GB
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
