1045530000 | Weidmüller

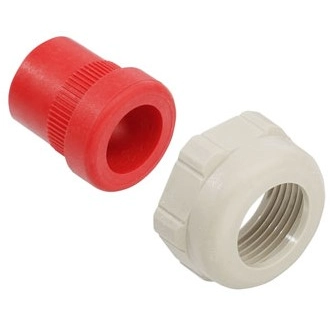

Cable gland, PG16, 30 mm, Clamping range 9 to 12 mm, IP68, 1045530000
Order No.: 50P3813
EAN: 4032248779437
MPN:
1045530000
VG16 HQ K68 9-12SH
Unit Price (€ / pc.)
2.2729 € *
Standard delivery time from the manufacturer is: 3 Weeks
Cable gland, 1045530000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 12 mm | |
| min. clamping range | 9 mm | |
| spanner size | 30 mm | |
| Degree of protection (IP) | IP68 | |
| Thread size | PG16 | |
| Material | PA | |
| max. operating temperature | 130 °C | |
| min. operating temperature | -40 °C | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73269098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
