1016120000 | Weidmüller
Cable gland, PG21, 30 mm, Clamping range 11 to 15.5 mm, IP68, 1016120000
Order No.: 50P2654
EAN: 4032248725595
MPN:
1016120000
VG 21 HQ EMV68 11-15.5
Unit Price (€ / pc.)
21.8127 € *
Available in 6 Days: 5 pcs. - if ordered today
Cable gland, 1016120000, Weidmüller

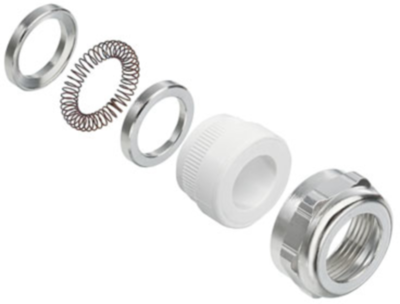

Plastic cable gland for reliable sealing of cables with strain relief. This type of EMC cable gland is made for shielding against interference frequencies, with a 360° screening connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG21 | |
| min. clamping range | 11 mm | |
| max. clamping range | 15.5 mm | |
| spanner size | 30 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 130 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74122000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
