1016110000 | Weidmüller
Cable gland, PG21, 30 mm, Clamping range 14 to 18 mm, IP68, 1016110000
Order No.: 50P2653
EAN: 4032248725588
MPN:
1016110000
VG 21 HQ MS68 14-18
Unit Price (€ / pc.)
13.1733 € *
Standard delivery time from the manufacturer is: 3 Weeks

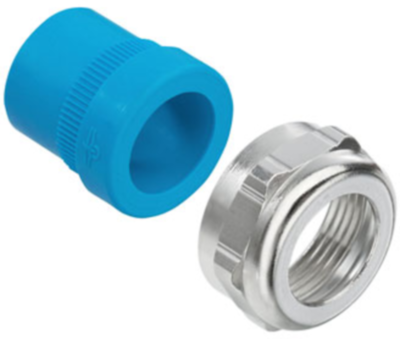

Cable gland, 1016110000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG21 | |
| min. clamping range | 14 mm | |
| max. clamping range | 18 mm | |
| spanner size | 30 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 130 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74122000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
