1016080000 | Weidmüller
Cable gland, PG16, 27 mm, Clamping range 11.5 to 15.5 mm, IP68, 1016080000
Order No.: 50P2650
EAN: 4032248725533
MPN:
1016080000
VG 16 HQ K68 11.5-15.5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.1876 € *
Available in 6 Days: 5 pcs. - if ordered today

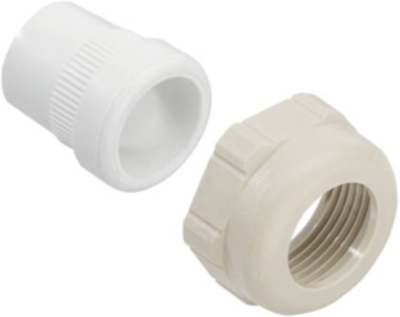

Cable gland, 1016080000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG16 | |
| min. clamping range | 11.5 mm | |
| max. clamping range | 15.5 mm | |
| spanner size | 27 mm | |
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
