1016070000 | Weidmüller
Cable gland, PG16, 27 mm, Clamping range 9 to 13 mm, IP68, 1016070000
Order No.: 50P2649
EAN: 4032248725526
MPN:
1016070000
VG 16 HQ K68 9-13
Unit Price (€ / pc.)
7.0448 € *
Available in 6 Days: 5 pcs. - if ordered today

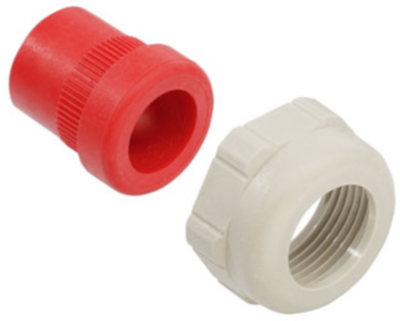

Cable gland, 1016070000, Weidmüller
Plastic cable gland for reliable sealing of cables with strain relief. This cable gland meets the most various IP protection classes to suit any industrial enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG16 | |
| min. clamping range | 9 mm | |
| max. clamping range | 13 mm | |
| spanner size | 27 mm | |
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39174000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
