1009910000 | Weidmüller
Cable gland, M63, 65/70 mm, Clamping range 34 to 44 mm, IP68, silver, 1009910000
Order No.: 50P2390
EAN: 4032248714735
MPN:
1009910000
VGM63-SS 68 KB 34-44
Unit Price (€ / pc.)
136.0527 € *
Standard delivery time from the manufacturer is: On Request

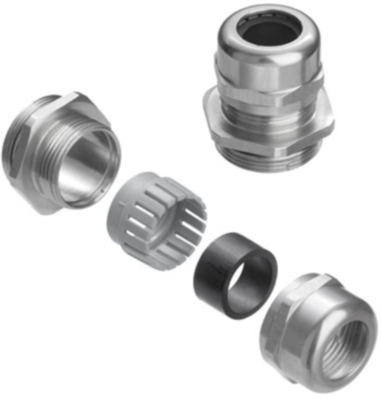

Cable gland, 1009910000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland is made froMstainless steel and is well suited for industrial applications requiring IP68 protection. Its excellent resistance against seawater and impacts make it ideal for use in harsh conditions.
Technical specifications
| Colour | silver | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 44 mm | |
| Length | 67 mm | |
| Product type | cable gland | |
| min. operating temperature | -40 °C | |
| Material | stainless steel | |
| spanner size | 65/70 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 34 mm | |
| Thread size | M63 |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 73269098 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
