1009900000 | Weidmüller
Cable gland, M50, 50/55 mm, Clamping range 22 to 32 mm, IP68, silver, 1009900000
Order No.: 50P2389
EAN: 4032248714728
MPN:
1009900000
VGM50-SS 68 KB 22-32
Unit Price (€ / pc.)
118.9048 € *
Available in 6 Days: 25 pcs. - if ordered today

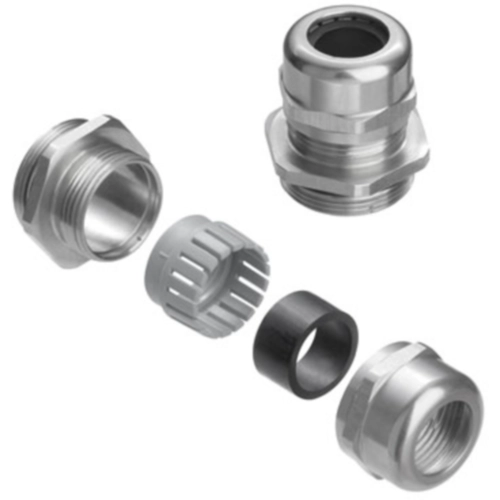

Cable gland, 1009900000, Weidmüller
Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland is made froMstainless steel and is well suited for industrial applications requiring IP68 protection. Its excellent resistance against seawater and impacts make it ideal for use in harsh conditions.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M50 | |
| Length | 55 mm | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 32 mm | |
| Product type | cable gland | |
| Material | stainless steel | |
| max. operating temperature | 100 °C | |
| spanner size | 50/55 mm | |
| min. operating temperature | -40 °C | |
| min. clamping range | 22 mm | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73269098 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
