1009840000 | Weidmüller
Cable gland, M12, 14/14 mm, Clamping range 3 to 6.5 mm, IP68, silver, 1009840000
Order No.: 50P2383
EAN: 4032248714667
MPN:
1009840000
VGM12-SS 68 KB 3-6.5
Unit Price (€ / pc.)
20.4323 € *
Available in 5 Days: 17 pcs. - if ordered today
Cable gland, 1009840000, Weidmüller

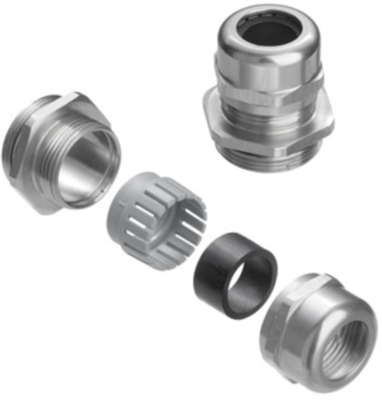

Metal cable gland with strain relief for reliable sealing of cables in industrial environments. This cable gland is made froMstainless steel and is well suited for industrial applications requiring IP68 protection. Its excellent resistance against seawater and impacts make it ideal for use in harsh conditions.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| Thread size | M12 | |
| max. clamping range | 6.5 mm | |
| Degree of protection (IP) | IP68 | |
| Length | 28 mm | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| spanner size | 14/14 mm | |
| Material | stainless steel | |
| Product type | cable gland | |
| min. clamping range | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
