0930001222 | Weidmüller
Cable gland, M20, 24 mm, Clamping range 9 to 13.5 mm, IP68, silver, 0930001222
Unit Price (€ / pc.)
15.9936 € *
Available in 5 Days: 100 pcs. - if ordered today

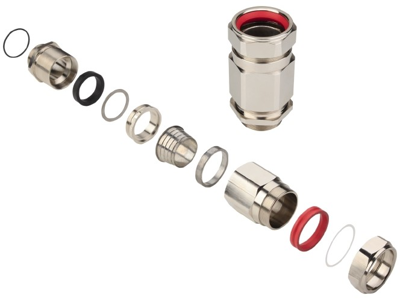

Cable gland, 0930001222, Weidmüller
Cable gland for use in hazardous areas. It is suitable for armored and non-armored cables, for use in Ex e (increased safety) and Ex d (flameproof enclosure) applications. M20, Brass.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 13.5 mm | |
| min. clamping range | 9 mm | |
| Colour | silver | |
| spanner size | 24 mm | |
| Degree of protection (IP) | IP68 | |
| Thread size | M20 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 180 °C | |
| min. operating temperature | -60 °C | |
| Product type | cable gland | |
| Length | 78 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
