22 400 117A | Wehrle
Automotive relays 1 Form A (N/O), 24 V (DC), 30 A, plug-in connection, 22 400 117A
Order No.: 27G3052
EAN: 4099889361742
MPN:
22 400 117A
75613124/99
This item is no longer available.
As an alternative, we recommend the following item:
Automotive relays 1 Form A (N/O), 24 V (DC), 40 A, plug-in connection, 75613124
Order No.: 27G3053
Manufacturer: Wehrle
per pc. 12.6973 € *
Automotive relays, type Wehrle Hochleistungsrelais 22.

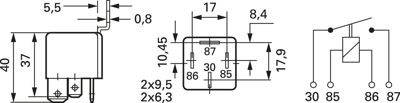

With fastening strap; Contacts: NO. Connection type: 2 tab terminals 9.5 mm and 2 tab terminals 9.5 mm.
Technical attributes (type, rated voltage/rated switching current): 22 400 117A, automotive relay 24 V/30 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Connection | plug-in connection | |
| Contact material | Ag alloy | |
| switching current | 30 A | |
| Contact type | 1 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
