12428108 | WEG
Motor protection circuit breaker, 3 pole, 1 to 1.6 A, 40 A, screw connection, 12428108
No longer in assortment
Unit Price (€ / pc.)
29.3216 € *
Available: 8 pcs.

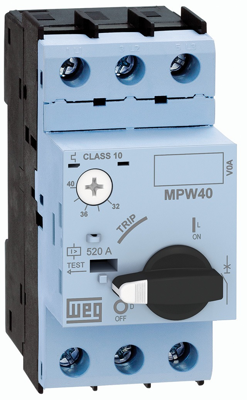

Motor protector, 12428108, Weg
Motor Protector, 1,0 - 1,6A, MPW40-3-D016. This motor-protective circuit breaker is a compact solution for the protection of electric circuits, and operation and protection of motors up to 45 kW or 55 kW. With high breaking capacity, thus allowing the installation in specific applications with high short-circuit current.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP20 | |
| Assembly | DIN rail | |
| Connection | screw connection | |
| Rated current | 40 A | |
| rated voltage (AC) | 690 V | |
| Version | motor protection circuit breaker | |
| Pin number | 3 pole | |
| Release | 1 to 1.6 A | |
| Actuator | rotary knob | |
| Network frequency | 50/60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BR |
Compliance
| Property | Value |
|---|---|
| SVHC free | not_specified |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
