42822008 | Weco
Connection terminal, 12 pole, 2.5 mm², white, screw connection, 24 A, 42822008
Discontinued
Unit Price (€ / pc.)
4.0817 € *
Available: 185 pcs.
Total Price:
4.08 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0817 €
10 pcs.
3.6771 €
50 pcs.
3.2130 €
100 pcs.
2.8322 €
500 pcs.
2.4990 €
*incl. VAT plus shipping costs
Subject to prior sale
Terminal with wire protection, 10 mm grid, Weco series 323-HDS
12-pole, made of PA 6.6, plain colored, UL 94 V-2, terminal shell made of nickel-plated brass with wire protection.

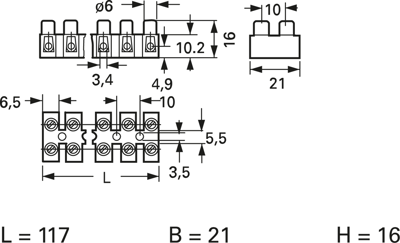

Dimensions: Length 117 mm, Width 21 mm, Height 16 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-12 | |
| Rated current | 24 A | |
| Colour | white | |
| Connection | screw connection | |
| Pin number | 12 pole | |
| Version | connection terminal | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
