42820044EN6 | Weco
Connection terminal, 12 pole, 2.5 mm², white, screw connection, 17.5 A, 42820044EN6
Terminal with wire protection, 8.0 mm grid, Weco series 302-HD, "no flame"
12-pole, made of PA 6.6, plain colored, UL 94 V-0, terminal shell made of nickel-plated brass with wire protection.

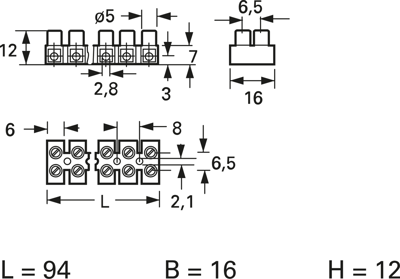

Dimensions: Length 94 mm, Width 16 mm, Height 12 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connection terminal | |
| Pin number | 12 pole | |
| Cable cross-section | 2.5 mm² | |
| Colour | white | |
| Connection | screw connection | |
| Rated current | 17.5 A | |
| AWG cross-section | AWG 22-14 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
