42820008 | Weco

Connection terminal, 12 pole, 2.5 mm², white, screw connection, 17.5 A, 42820008

Order No.: 09H222
EAN: 4099891041236
MPN:
42820008
302-HDS/12
Series: 302-HDS

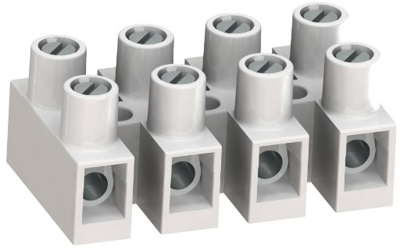

42820008 Weco Terminal Blocks Image 1
42820008 Weco Terminal Blocks Image 2
Image may differ

Discontinued

Unit Price (€ / pc.)
3.7604 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
3.76 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7604 €
10 pcs.
3.3082 €
100 pcs.
2.9036 €
250 pcs.
2.7846 €
1000 pcs.
2.5942 €
*incl. VAT plus shipping costs
Subject to prior sale

Terminal with wire protection, 8.0 mm grid, Weco series 323-HDS

12-pole, made of PA 6.6, plain colored, UL 94 V-2, terminal shell made of nickel-plated brass with wire protection.

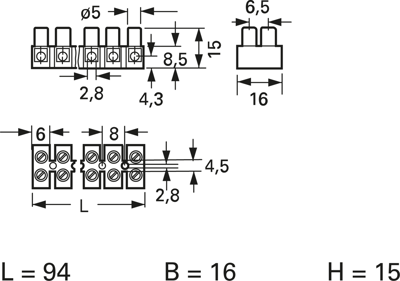

Dimensions: Length 94 mm, Width 16 mm, Height 15 mm

Technical specifications
AWG cross-section AWG 22-14
Cable cross-section 2.5 mm²
Connection screw connection
Pin number 12 pole
Colour white
Version connection terminal
Rated current 17.5 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
