20875002 | Weco
PCB terminal, 2 pole, pitch 5 mm, AWG 22-14, 15 A, screw connection, red, 20875002
Discontinued
Unit Price (€ / pc.)
0.9401 € *
Available: 285 pcs.
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8568 €
50 pcs.
0.7854 €
100 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

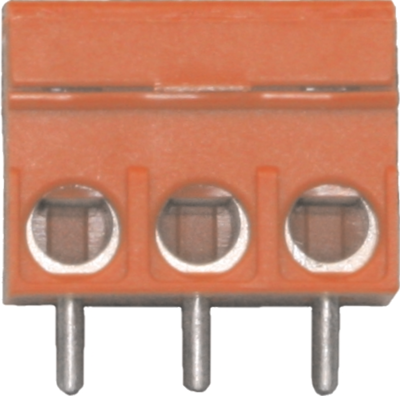

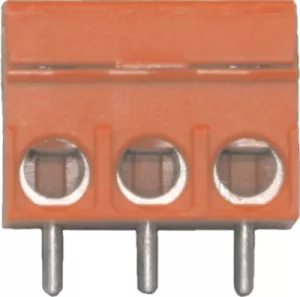

PCB terminal block, type Weco 990-DS.
For PCB mounting, with wire protection; Shell: polyamide, red, self-extinguishing. Rated voltage: 400 V. Rated current: 15 A. Rated terminating capacity: 1.5 mm². Clamping range: to 2.5 mm² solid and fine-wire. Thermal resistance: –40 to +80 °C (briefly to +140 °C). Grid: 5.0 mm. Certifications: UL, CSA, SEV.
Technical attributes (type, number of poles, length): 990-DS/02, 2-pole, L 10 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 11.3 mm | |
| AWG cross-section | AWG 22-14 | |
| Rated current | 15 A | |
| Height | 14.8 mm | |
| Colour | red | |
| Assembly | THT | |
| Contact distance | RM 5/5.08 | |
| Grid | 5 mm | |
| Rated voltage | 400 V | |
| Connection | screw connection | |
| Pin number | 2 pole | |
| Cable cross-section | 0.34-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
