10801404 | Weco

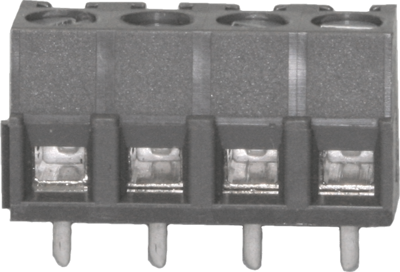

PCB terminal, 4 pole, pitch 5 mm, AWG 26-14, 16 A, screw connection, gray, 10801404
Discontinued
Unit Price (€ / pc.)
1.7255 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
1.73 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7255 €
25 pcs.
1.4756 €
100 pcs.
1.3685 €
250 pcs.
1.3090 €
1000 pcs.
1.1900 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB screw connector, type Weco
With solder pins for PCB mounting and screw terminals with lift system. Dovetail interlocking feature for multi-pole assembly and different design.
Strip length: 20 mm
Shell: tough polyamide, self-extinguishing
PCB hole diameter: 1.2 mm
Rated cross-section: 1.5 mm²
Technical specifications
| Rated voltage | 300 V | |
| Contact distance | RM 5/5.08 | |
| AWG cross-section | AWG 26-14 | |
| Cable cross-section | 0.14-2.5 mm² | |
| Connection | screw connection | |
| Pin number | 4 pole | |
| Grid | 5 mm | |
| Depth | 10 mm | |
| Colour | gray | |
| Rated current | 16 A | |
| Height | 13.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
