80870923 | Weco
Flat plug connector, 12 pole, 6.3 x 0.8 mm or 2.8 x 0.8 mm, L 113.5 mm, uninsulated, 1.0-2.5 mm², AWG 16-14, 80870923
Discontinued
Unit Price (€ / pc.)
2.2610 € *
Available: 58 pcs.
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
25 pcs.
1.8921 €
100 pcs.
1.7612 €
250 pcs.
1.6660 €
1000 pcs.
1.5232 €
*incl. VAT plus shipping costs
Subject to prior sale

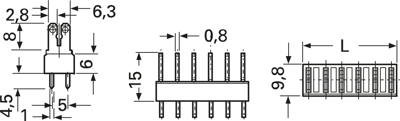

Flat plug connector, 900-S-10/12, Weco
The tab connector 900-S-10/12 with double solder termination and a pitch of 10 mm is designed for 1 x 2.8 mm or 1 x 6.3 mm tab connector receptacles. Depending on the respective application it allows to plug in bare, partially or fully insulated tab receptacles according to DIN 46247. Also non-insulated 2.8 mm or 6.3 mm tab receptacles can be plugged on these tab connectors. Insulation receptacles ISO-25 can be used to insulate 2.8 mm or 6.3 mm tab receptacles.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| AWG cross-section | AWG 16-14 | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 6.3 x 0.8 mm or 2.8 x 0.8 mm | |
| Nominal size according to DIN | DIN 46247 | |
| Version | flat plug connector, 12 pole | |
| Cable cross-section | 1.0-2.5 mm² | |
| Isolated | No | |
| Length | 113.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
