75870903 | Weco

Flat plug connector, 2 pole, 6.3 x 0.8 mm or 2.8 x 0.8 mm, L 13.52 mm, uninsulated, 1.0-2.5 mm², AWG 16-14, 75870903

Order No.: 07F5962
EAN: 4099889612271
MPN:
75870903
900-S-7,5/02
Series: 900-S
75870903 Weco Flat Plugs
Image may differ

Discontinued

Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4641 €
50 pcs.
0.4403 €
100 pcs.
0.3808 €
500 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale

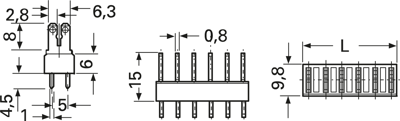

Flat plug connector, 900-S-7,5/02, Weco

The tab connector 900-S-7.5/02 with double solder termination and a pitch of 7.5 mm is designed for 1 x 2.8 mm or 1 x 6.3 mm tab connector receptacles. Depending on the respective application it allows to plug in bare, partially or fully insulated tab receptacles according to DIN 46247. Also non-insulated 2.8 mm or 6.3 mm tab receptacles can be plugged on these tab connectors. Insulation receptacles ISO-25 can be used to insulate 2.8 mm or 6.3 mm tab receptacles.

Technical specifications
Isolated No
Connection solder connection
Cable cross-section 1.0-2.5 mm²
Material brass, tin-plated
Version flat plug connector, 2 pole
AWG cross-section AWG 16-14
Length 13.52 mm
Plug width x plug thickness 6.3 x 0.8 mm or 2.8 x 0.8 mm
Nominal size according to DIN DIN 46247
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
