61830002 | Weco
Flat plug connector, 1 pole, 2.8 x 0.8 mm, L 12 mm, insulated, straight, transparent, 1.0-6.0 mm², AWG 16-10, 61830002
Discontinued
Unit Price (€ / pc.)
0.3213 € *
Available: 1,934 pcs.
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3213 €
50 pcs.
0.2916 €
100 pcs.
0.2689 €
500 pcs.
0.2440 €
2500 pcs.
0.2225 €
*incl. VAT plus shipping costs
Subject to prior sale

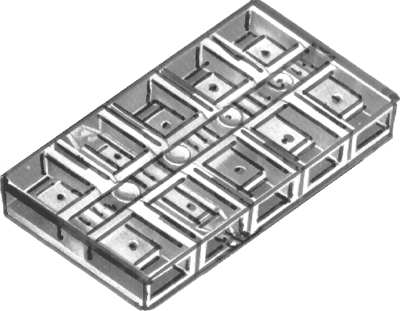

Tab terminal strip, 61830002, Weco
Splittable, for receptacles compliant with DIN 46247; Rated voltage: 380 V, to VDE 0110. Insulation group B, when used on insulated surface. Rated current: 6 A. Housing: soft PVC. Thermal resistance: max. +70 °C. Leakage current resistance: CTI greater than 400. Contacts: nickel-plated brass. The end of the plugged receptacle projects by approx. 7.0 mm over the housing. Dimensions calculated as follows: dimension L (length) = number of poles x 12.5 mm, fastening hole pitch as from 3-pole version = (number of poles - 2) x 12.3 mm.
For 2.8 mm mating width.
Each with single terminals on one side and twin terminals on the opposing side.
Technical attributes (type, number of poles): 401-PVC-YBS/01, single-pole.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug connector, 1 pole | |
| Design | straight | |
| Plug width x plug thickness | 2.8 x 0.8 mm | |
| Length | 12 mm | |
| Material | brass, nickel-plated | |
| Isolated | Yes | |
| Insulation colour | transparent | |
| Cable cross-section | 1.0-6.0 mm² | |
| AWG cross-section | AWG 16-10 | |
| Connection | crimp connection | |
| Nominal size according to DIN | DIN 46247 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
