47870904 | Weco

Flat plug connector, 3 pole, 6.3 x 0.8 mm, L 18.5 mm, insulated, red, 2.5 mm², AWG 14, 47870904

Order No.: 07F6032
EAN: 4099889612400
MPN:
47870904
900-SUN-7,5/03
Series: 900-SUN

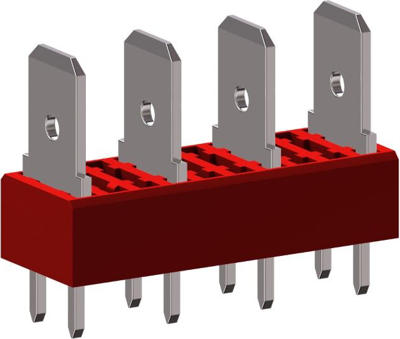

47870904 Weco Flat Plugs Image 1

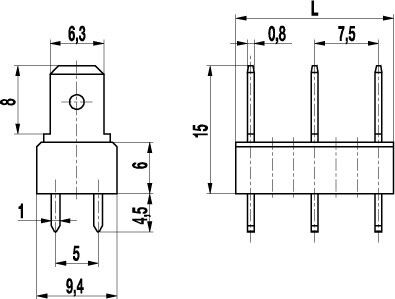

47870904 Weco Flat Plugs Image 2
Image may differ

Discontinued

Unit Price (€ / pc.)
0.6783 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
6.78 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6783 €
50 pcs.
0.6188 €
100 pcs.
0.5593 €
500 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat plug connector, 900-SUN-7,5/03, Weco

The tab connector 900-SUN-7.5/03 with double solder termination and a pitch of 7.5 mm is designed for 6.3 mm tab connector receptacles. Depending on the respective application it allows to plug in bare, partially or fully insulated tab receptacles according to DIN 46247. Insulation receptacles ISO-25 and ISO-250 can be used to insulate 6.3 mm tab receptacles.

Technical specifications
Insulation colour red
Nominal size according to DIN DIN 46247
AWG cross-section AWG 14
Cable cross-section 2.5 mm²
Connection solder connection
Length 18.5 mm
Plug width x plug thickness 6.3 x 0.8 mm
Isolated Yes
Version flat plug connector, 3 pole
Material brass, tin-plated
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
