32830002 | Weco

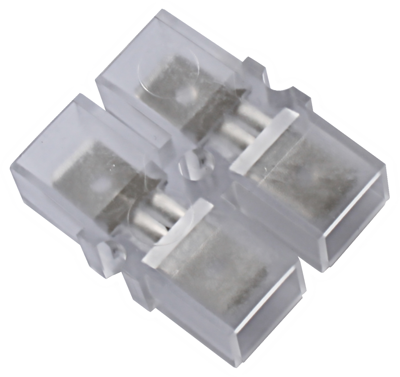

Flat plug connector, 2 pole, 6.3 x 0.8 mm, L 23 mm, insulated, straight, transparent, 1.0-6.0 mm², AWG 16-10, 32830002
Discontinued
Unit Price (€ / pc.)
0.5474 € *
Available: 3,852 pcs.
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5474 €
50 pcs.
0.5236 €
100 pcs.
0.4879 €
500 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat plug connector, 32830002, Weco
The tab connector 32830002 is used mainly as connector, lead distributor or as electrical interface in equipment and motor vehicles. Crimped points can be insulated with ISO insulation sleeves. This tab connector is suitable for tab receptacles according to DIN 46247.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Nominal size according to DIN | DIN 46247 | |
| shrinkable tubing | No | |
| Material | brass, nickel-plated | |
| Insulation colour | transparent | |
| Connection | crimp connection | |
| AWG cross-section | AWG 16-10 | |
| Isolated | Yes | |
| Length | 23 mm | |
| Design | straight | |
| Version | flat plug connector, 2 pole | |
| Plug width x plug thickness | 6.3 x 0.8 mm | |
| Cable cross-section | 1.0-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
