112463009 | Waldmann
LED-machine light, with 40° beam angle, IP40, 112463009
Order No.: 07L4053
EAN: 4099891440633
MPN:
112463009
This item is no longer available.
As an alternative, we recommend the following item:
LED-machine light, 9 W, 550 lm, IP20/IP65, 113181000-00680167
Order No.: 07L4054
Manufacturer: Waldmann
per pc. 685.2972 € *

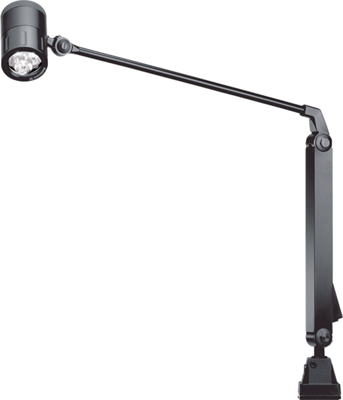

Machine LED lights, type Waldmann SPOT LED 003 MCBFL.
Smooth moving articulated rod system with cup springs and additional joint on the lamp socket, switch, transformer adapter, 10 W LED modules and approx. 3.0 m power cord (Euro/US connector); Operation: 100 to 240 V/50 to 60 Hz. Case material: black anodized aluminum. Rod system material: steel, varnished deep black. Lamp cover: glass lens. Max. range of action: 800 mm. Degree of protection: IP 40. Safety class: II. Weight: approx. 1.6 kg. Table clamp, socket or wall bracket available on separate order.
Technical attributes (type, version): MCBFL 3 N, floodlight with 40° radiation angle
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | aluminum | |
| Degree of protection (IP) | IP40 | |
| Version | with 40° beam angle | |
| Explosion Safe | No | |
| Illuminant type | LED |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 94054990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
