112460003 | Waldmann
LED-machine light, with 40° beam angle, IP67, 112460003
Order No.: 07L4084
EAN: 4099891440725
MPN:
112460003
Unit Price (€ / pc.)
376.3613 € *
Standard delivery time from the manufacturer is: 1 Week

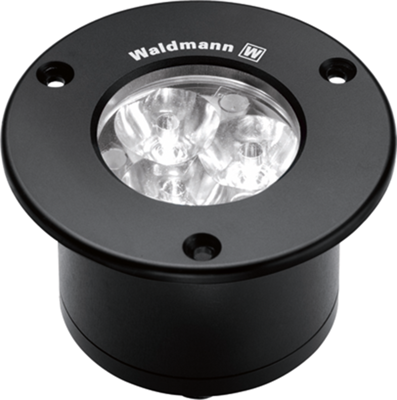

Machine LED lights for surface and panel mounting, type Waldmann SPOT LED 003 MC.
For easy integration into small-scale machinery or units, floodlight with 40° radiation angle, 10 W LED module and approx. 3.0 m connecting cable with bare stranded wire ends; Operation: 24 V AC/DC. Case material: black anodized aluminum. Lamp cover: glass lens. Degree of protection: IP 67. Safety class: III. Weight: approx. 0.4 kg.
Technical attributes (type, design, mounting): MCEYL 3 S, panel mounted, screw mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Explosion Safe | No | |
| Illuminant type | LED | |
| Shell Material | aluminum | |
| Degree of protection (IP) | IP67 | |
| Version | with 40° beam angle |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 94054990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
