289-664 | WAGO

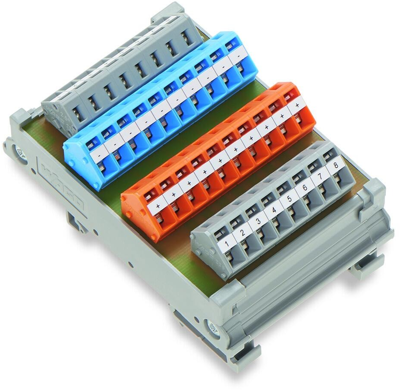

289-664, connection module
Unit Price (€ / pc.)
50.5988 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
50.60 € *
Price list
Quantity
Price per unit*
1 pcs.
50.5988 €
5 pcs.
45.5413 €
15 pcs.
42.3640 €
*incl. VAT plus shipping costs
Subject to prior sale
Connection modules for actuators, for TS 35 mounting rails, type 289-.
For 8 x 3-conductor actuators, cage clamp terminals for cross-sections from 0.08 to 2.5 mm², Operating voltage: 125 VUC. Current per terminal: 1 A. Accumulated current: max. 8.0 A. Rated voltage to VDE 0110 part 1/4.97, IEC 60664-1: 125 V/1.5 kV/2. Dime
Type: 289–664, connection module
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 85 mm | |
| Connection | spring-clamp connection | |
| Rated voltage | 100 V | |
| Width | 56 mm | |
| Height | 34 mm | |
| Version | connection module |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
