289-196 | WAGO
Transfer module, 8 pole, 1.5 A, 48 V, 289-196
Unit Price (€ / pc.)
85.6324 € *
Standard delivery time from the manufacturer is: 3 Weeks

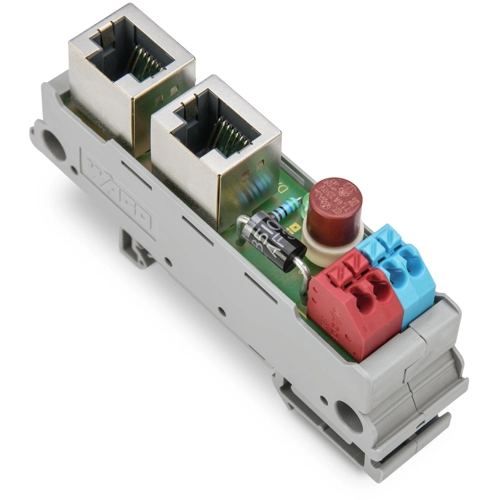

Interface module, 289-196, WAGO
Interface module, RJ-45, with power jumper contacts, PCB terminal blocks, Cat. 5.
Features
- Interface module with RJ-45 connector for ETHERNET
- Passive PoE-injector
- For up to 100 Mbit/s, Cat. 5
- Cabinet wiring with preassembled RJ-45-patch cabels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | transfer module | |
| Pin number | 8 pole | |
| Rated current | 1.5 A | |
| Rated voltage | 48 V | |

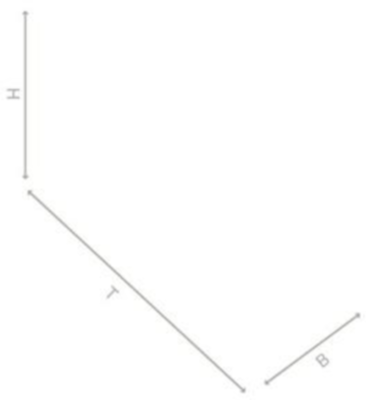

| Length | 85 mm | |
| Width | 20.5 mm | |
| Height | 51 mm | |
| Connection | spring-clamp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85423990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | lead, hexahydromethylphthalic anhydride |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
