288-870/000-030 | WAGO
WAGO 288-870/000-030
Unit Price (€ / pc.)
81.5864 € *
Standard delivery time from the manufacturer is: 3 Weeks

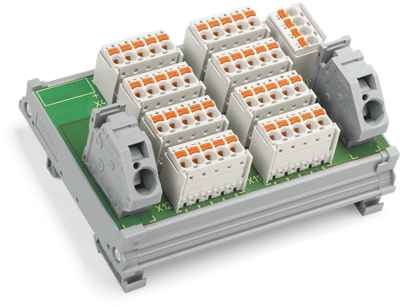

Potential distribution module, 288-870/000-030, WAGO

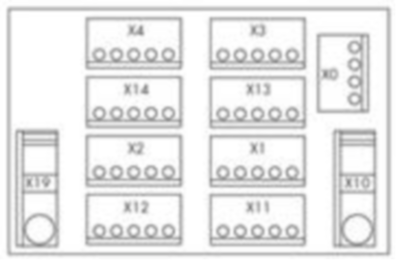

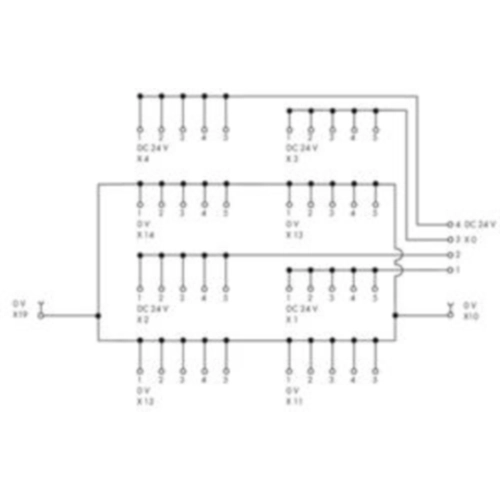

Potential distribution module, 4 potentials, with 6 connection points each, with 22 ground clamping points.
Features
- May be used with electronic circuit breakers for 24 and 0 VDC power distribution, as a substitute for rail-mount terminal blocks
- Pre-wiring and electrical isolation of current paths via pluggable picoMAX female headers
- Optional coding pins (2092-1610) protect against any inadvertent mixing of female headers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 85 mm | |
| Connection | spring-clamp connection | |
| Rated voltage | 24 V | |
| Width | 100 mm | |
| Height | 49 mm | |
| Version | potential distribution module |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
