857-642 | WAGO
Multifunction relay, 0.01 s to 100 h, 7 functions, 1 Form C (NO/NC), 24 VDC, 6 A/250 VAC, 857-642
Unit Price (€ / pc.)
178.9403 € *
Standard delivery time from the manufacturer is: 3 Weeks

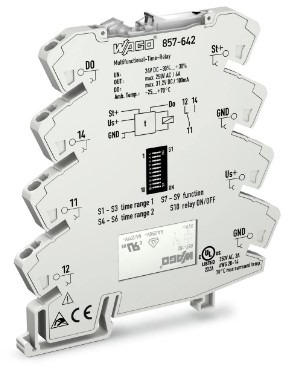

Timer relay module, 857-642, WAGO
Timer relay module, Nominal input voltage: 24 VDC, Limiting continuous current: 6 A, Railway, Multifunction/Multitime, Yellow status indicator, Module width: 6 mm, Gray.
Features
- 7 functions
- 2 separately adjustable time ranges
- Function and time range adjustable via DIP switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Time display | 0.01 s to 100 h | |
| Function | 7 functions | |
| Contact type | 1 Form C (NO/NC) | |
| Voltage | 24 VDC | |
| Breaking capacity | 6 A/250 VAC | |
| Connection | push-in |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| Date of RoHS guidelines | 3/31/15 |
