773-514 | WAGO

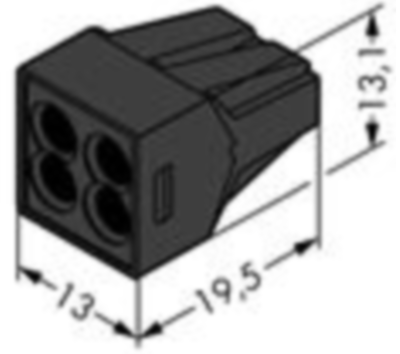

Cable connector, 1 pole, 0.75-2.5 mm², clamping points: 4, black, push-in wire connection, 24 A, 773-514
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4522 €
50 pcs.
0.4165 €
100 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector, 773-514, WAGO
PUSH WIRE connector for junction boxes, for solid and stranded conductors, maximum 2.5 mm², 4-conductor, Black housing, black cover, maximum surrounding air temperature: 105 °C, 2,50 mm², black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connection clamp | |
| Pin number | 1 pole | |
| Cable cross-section | 0.75-2.5 mm² | |
| Number of terminals | 4 | |
| Colour | black | |
| Connection | push-in wire connection | |
| Rated current | 24 A | |
| AWG cross-section | AWG 18-12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
