Splicing connector, 773-162, WAGO

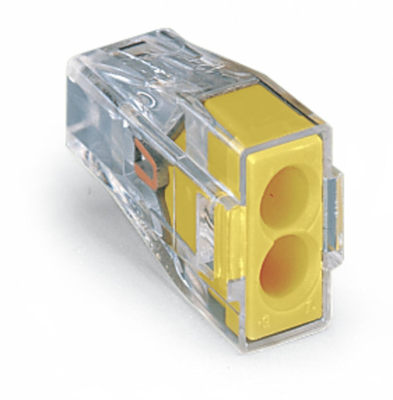

Enjoy fault-free electrical installations with push wire splicing connector (item number 773-162). This PUSH WIRE connector ensures safe and quick connections in both surface-mounted and flush-mounted junction boxes in any building, regardless of installation complexity. Rated current and voltage are key factors to consider when choosing a splicing connector, as they indicate how the product can be used. This product has a rated voltage of 400 V and a rated current of 24 A, making it suitable for high-load applications. Conductors should only be connected to push wire splicing connector if their strip length is 12 mm. This product features conductor terminals and utilizes PUSH WIRE. This PUSH WIRE connection offers a simple and reliable solution for connecting solid conductors. The item's dimensions are 9.2 x 13.1 x 19.5 mm (width x height x depth). Depending on the type of conductor, push wire splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 2.5 mm². Tin is used for coating the contact surfaces.
