Splicing connector, 773-118, WAGO

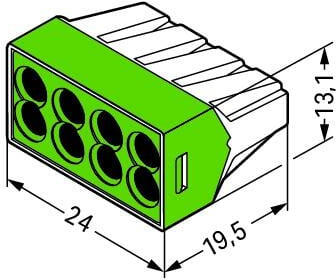

Easy electrical installations are guaranteed with push wire splicing connector (item number 773-118). Quickly and securely connect conductors in any building installation with PUSH WIRE connectors, designed for both surface and flush-mounted junction boxes. Whether used in private or commercial applications, this PUSH WIRE connector for junction boxes ensures simple and time-saving installations. Rated current and voltage are important parameters when selecting a splicing connector, as they determine the product's suitability for different applications. This product has a rated voltage of 400 V and a rated current of 24 A, making it suitable for high-load applications. Conductors should only be connected to push wire splicing connector if their strip length is 12 mm. This product features conductor terminals and utilizes PUSH WIRE. Our PUSH WIRE connection uses the stiffness of the conductor to overcome the clamping spring's contact force, allowing faster and easier conductor clamping. The item's dimensions are 24 x 13.1 x 19.5 mm (width x height x depth). Push wire splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 2.5 mm². The contact surface is coated with tin.
