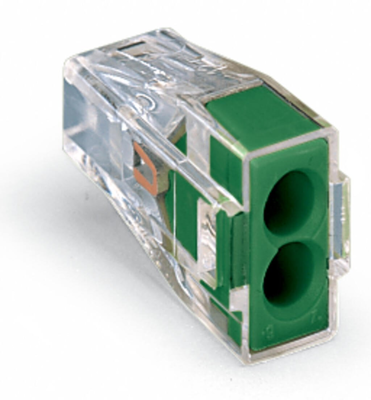

Splicing connector, 773-112, WAGO
The push wire splicing connector (item number 773-112) simplifies electrical installations. Quickly and securely connect conductors in any building installation with PUSH WIRE connectors, designed for both surface and flush-mounted junction boxes. Whether used in private or commercial applications, this series of PUSH WIRE connectors for junction boxes ensures simple and time-saving installations. Rated current and voltage are important parameters when choosing a splicing connector, as they indicate possible applications and uses. This product has a rated voltage of 400 V and a rated current of 24 A, making it suitable for high-load applications. Strip lengths must be 12 mm when connecting conductors to push wire splicing connector. This product incorporates conductor terminals and utilizes PUSH WIRE. This PUSH WIRE connection uses the stiffness of the conductor to overcome the clamping spring's contact force, allowing faster and easier conductor clamping. The item's dimensions are 9.2 x 13.1 x 19.5 mm (width x height x depth). Push wire splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 2.5 mm². Tin is used for coating the contact surfaces.
