857-811 | WAGO
Temperature transducer, 857-811
Unit Price (€ / pc.)
355.5958 € *
Standard delivery time from the manufacturer is: 3 Weeks
Temperature measuring transducer, 857-811, Wago

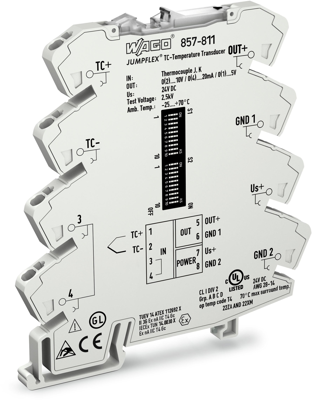

Temperature Transmitter for Thermocouples 857-811
Features
- Current and voltage output signal
- Configuration via software
- Supply voltage DC 24 V
- 6 mm width
- PC configuration interface
- For thermocouples type J and K (E, R, N, S, T, B, C)
- Cold junction compensation on/off
- Calibrated measuring range switching
- Detection: wire breakage of the sensor
- Switchable clipping
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 6 mm | |
| measurement range | -210-1200 °C (type J), -200-1350 °C (type K) | |
| Length | 94 mm | |
| Weight | 36 g | |
| Version | for thermocouples | |
| Product type | temperature transducer | |
| Height | 97.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
