857-569 | WAGO

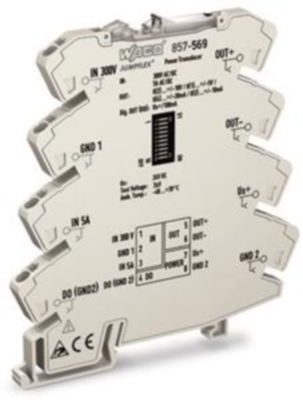

Power measuring transducer, 857-569
Unit Price (€ / pc.)
528.836 € *
Standard delivery time from the manufacturer is: 3 Weeks
Power signal conditioner, 857-569, WAGO
The 857-569 it's a power signal conditioner that measures both AC/DC voltages and currents, converting the input signal into a standard analog signal at the output. The measured value processing can be switched between RMS value or arithmetic mean value and between effective, apparent or reactive power, and phase angle.
Features
- RMS measurement or arithmetic mean value
- A digital signal output reacts to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values)
- Switchable filter function

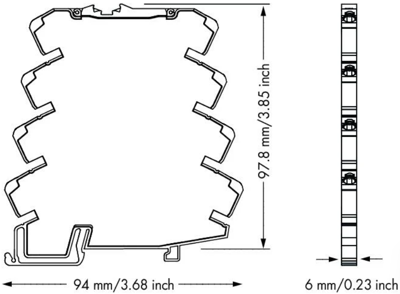

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 6 mm | |
| Length | 94 mm | |
| Weight | 39.2 g | |
| Version | 3-way separator | |
| Product type | power measuring transducer | |
| Height | 97.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
