857-552 | WAGO
Current transducer, 857-552
Unit Price (€ / pc.)
340.7922 € *
Standard delivery time from the manufacturer is: 3 Weeks

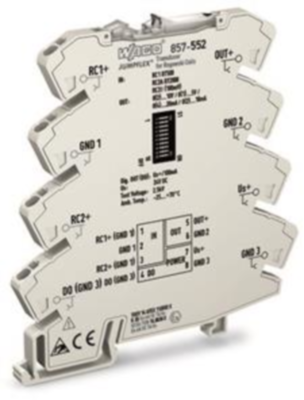

Current signal conditioner, 857-552, WAGO
The 857-552 is a current signal conditioner input for Rogowski coils. This product records RMS values from alternating currents via Rogowski coil, converting the input signal into an standard analog signal on the output side.
Features
- PC configuration interface
- Digital switching output (configurable switching thresholds)
- Configurable output signal
- Configuration via DIP switch
- No current bar interruption during installation
- Measurement range overflow indication
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 35.1 g | |

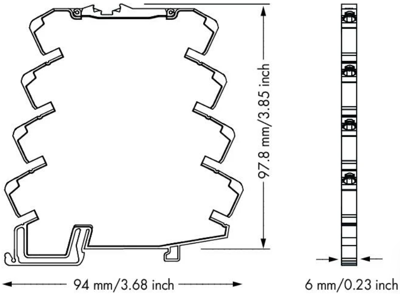

| Length | 94 mm | |
| Product type | current transducer | |
| Width | 6 mm | |
| Height | 97.8 mm | |
| Version | 3-way separator |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
