857-452 | WAGO

Passive isolator, 857-452

Order No.: 45P2264
EAN: 4045454471354
MPN:
857-452
Series: 857
857-452 WAGO Signal Converters and Measuring Transducers Image 1
857-452 WAGO Signal Converters and Measuring Transducers Image 2
857-452 WAGO Signal Converters and Measuring Transducers Image 3
Image may differ
Unit Price (€ / pc.)
378.3843 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
378.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
378.3843 €

Passive isolator, 857-452, WAGO

The 857-452 is a passive isolator that electrically isolates and filters 0(4)–20 mA standard analog signals, while drawing power for signal transmission from the input circuit. The connected sensor supplies the passive isolator with the required power to energize the connected load.

Features

  • No additional supply voltage required
Technical specifications

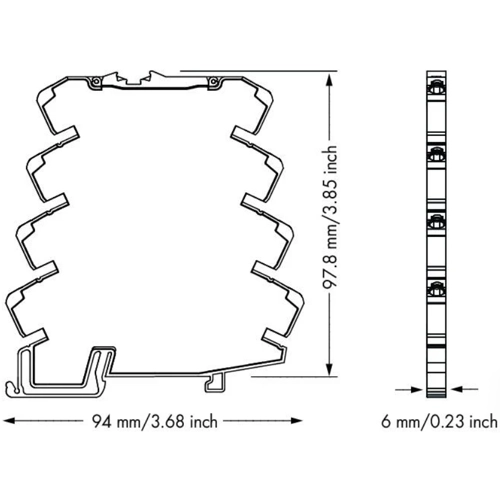

Weight 62 g
Width 6 mm
Height 97.8 mm
Length 94 mm
Product type passive isolator
Version 3-way separator
measurement range input 0(4)-20 mA, output 0(4)-20 mA
Logistics
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
