857-451 | WAGO

Passive isolator, 857-451

Order No.: 45P2263
EAN: 4045454471323
MPN:
857-451
Series: 857

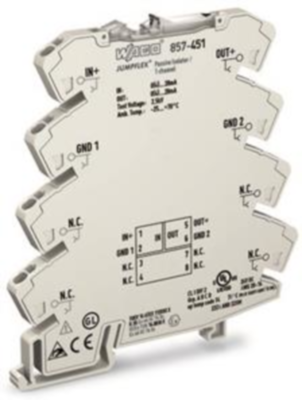

857-451 WAGO Signal Converters and Measuring Transducers Image 1
857-451 WAGO Signal Converters and Measuring Transducers Image 2
857-451 WAGO Signal Converters and Measuring Transducers Image 3
Image may differ
Unit Price (€ / pc.)
233.6446 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
233.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
233.6446 €

Passive isolator, 857-451, WAGO

The 857-451 is a passive isolator that electrically isolates and filters 0(4)–20 mA standard analog signals, while drawing power for signal transmission from the input circuit. The connected sensor supplies the passive isolator with the required power to energize the connected load.

Features

  • No additional supply voltage required
Technical specifications

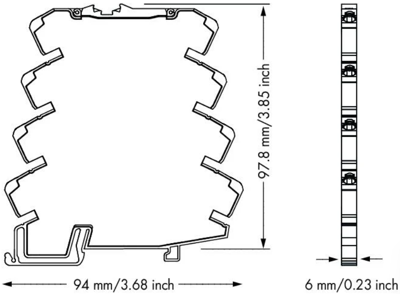

Weight 34.2 g
Width 6 mm
Height 97.8 mm
Length 94 mm
Product type passive isolator
Version 3-way separator
measurement range input 0(4)-20 mA, output 0(4)-20 mA
Logistics
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
