857-400 | WAGO
Isolation amplifier, 857-400
Unit Price (€ / pc.)
337.365 € *
Standard delivery time from the manufacturer is: 3 Weeks
Transducers series JUMPFLEX, type Wago 857.
Immediately ready for use, calibration not necessary, triple electrical isolation at 2.5 kV; Supply voltage: 24 VDC. Housing width: 6.0 mm.
Isolating amplifiers, type 857-400.
Configurable with zero/range calibration. Amplifies, filters and separates analog standard signals; I/O configuration: 0 to 5.0 V, 0 to 10 V, 1.0 to 5.0 V, 2.0 to 10 V, 0 to 20 mA, 4.0 to 20 mA .

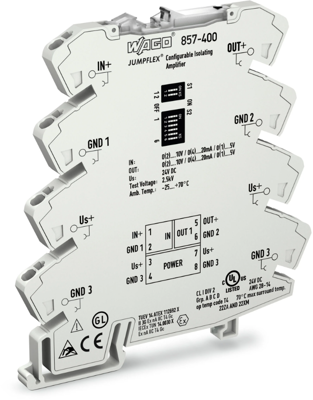

Type: 857-400, isolating amplifier
Technical specifications
| Filter | Property | Value |
|---|---|---|

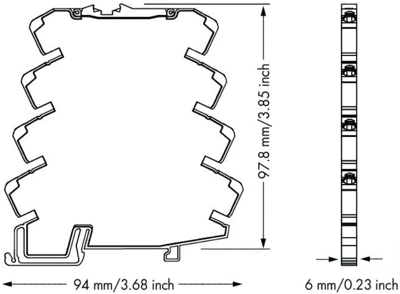

| Length | 94 mm | |
| Product type | isolation amplifier | |
| Height | 97.8 mm | |
| Width | 6 mm | |
| Weight | 43 g | |
| Version | switchable cut-off frequency |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead |
| RoHS conform | Yes |
| SVHC free | No |
