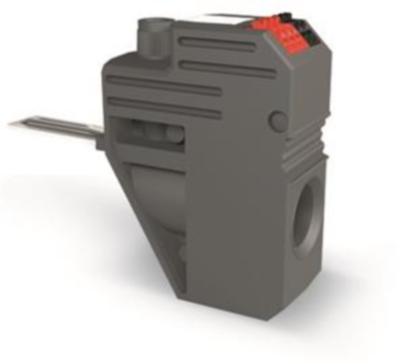

Current and voltage tap, 855-951/250-000, Wago

The current and voltage tap for the 95mm² high-current through terminal forms the optimum basis for successful energy management. Wherever electrical power is to be measured, current and voltage are required. The so-called current and voltage tap is a combination of current transformer and voltage tap and can be easily and quickly mounted in the jumper shaft of the 95mm² high-current feed-through terminal.

An integrated fuse provides safe protection for downstream energy measuring devices. An integrated current transformer with a conversion ratio of 250 A / 1 A enables precise current measurement in accordance with EN 61869-2 in accuracy class 0.5. The connection of the current output is marked S1 (black) and S2 (red).
