2857-534 | WAGO
Limit switch, 2857-534
Unit Price (€ / pc.)
288.456 € *
Standard delivery time from the manufacturer is: On Request

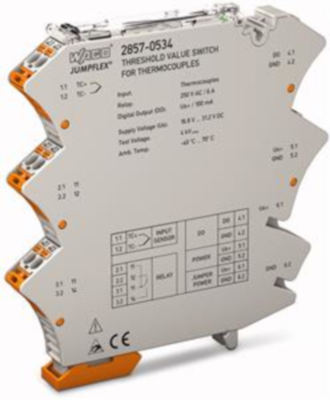

Thermocouple limit switch, 2857-534, Wago
The thermocouple limit switch for TC sensors is used to monitor and report signal conditions of up to two switching thresholds.
Features
- One digital signal output and one relay with changeover contact react at configured measuring range limits (switch-on and switch-off delay and limit switch function with up to two configurable threshold values).
- Adjustable software filter
- Simulation of input and output behavior via configuration display
- Safe 3-way isolation with 4kV test voltage according to EN 61140
Technical specifications
| Filter | Property | Value |
|---|---|---|

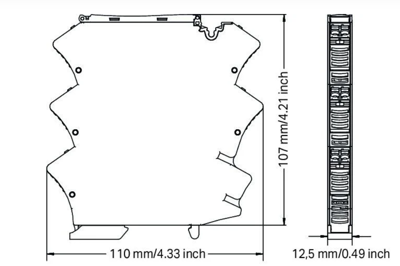

| Length | 110 mm | |
| Height | 107 mm | |
| Width | 12.5 mm | |
| Weight | 63.8 g | |
| Product type | limit switch | |
| Version | 1 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
