2857-533 | WAGO
Limit switch, 2857-533
Unit Price (€ / pc.)
288.456 € *
Standard delivery time from the manufacturer is: 3 Weeks

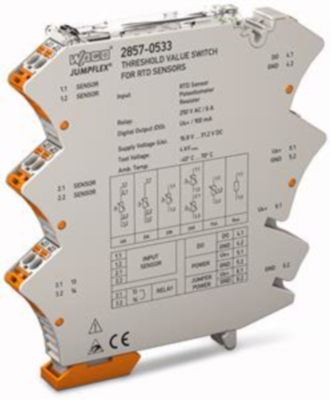

RTD limit switch, 2857-533, Wago
The RTD limit switch for RTD sensors, potentiometers and resistors is used to monitor and report signal states of up to two switching thresholds.
Features
- A digital signal output and a relay with normally open contact react at configured measuring range limits (switch-on and switch-off delay and limit switch function with up to two configurable threshold values).
- Freely adjustable RTD factor
- Adjustable software filter
- Simulation of input and output behavior via configuration display
- Safe 3-way isolation with 4kV test voltage according to EN 61140
Technical specifications

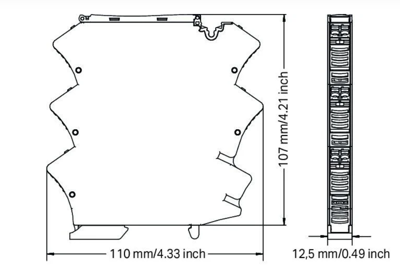

| Weight | 86.5 g | |
| Width | 12.5 mm | |
| Height | 107 mm | |
| Length | 110 mm | |
| Product type | limit switch | |
| Version | 1 Form A (N/O) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90303370 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide, lead |
| SVHC free | No |
| RoHS conform | Yes |
