880-907 | WAGO

2-wire protective earth terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 25 A, yellow/green, 880-907

Order No.: 45P2816
EAN: 4045454121167
MPN:
880-907
Series: 880

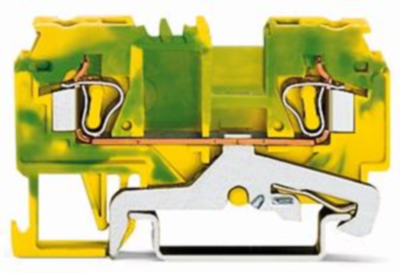

880-907 WAGO Series Terminals Image 1
880-907 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
5.0456 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.0456 €

Ground terminal block, 880-907, Wago

2-wire protective conductor terminal block with test opening for test plugs Ø 2 mm and Ø 2.3 mm max. insulation diameter 4.4 mm green-yellow

Technical specifications
Colour yellow/green
AWG cross-section AWG 28 to 12
Rated current 25 A
Width 5 mm
Height 58.5 mm
Length 29 mm
Cable cross-section 0.08-4.0 mm²
Number of terminals 2
Pin number 1 pole
Version 2-wire protective earth terminal
Connection spring-clamp connection
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
