880-907/999-940 | WAGO

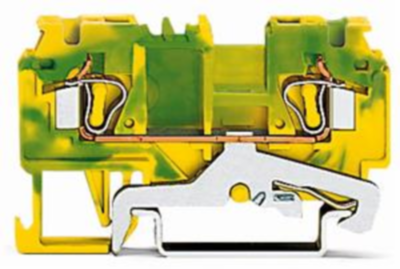

2-wire protective earth terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 25 A, yellow/green, 880-907/999-940
Unit Price (€ / pc.)
5.0456 € *
Standard delivery time from the manufacturer is: 4 Weeks
Ground terminal block, 880-907/999-940, Wago
2-conductor protective earth terminal block with test opening for test plugs Ø 2 mm and Ø 2.3 mm for use with special cables max. insulation diameter 4.4 mm green-yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 28 to 12 | |
| Number of terminals | 2 | |
| Length | 29 mm | |
| Height | 58.5 mm | |
| Width | 5 mm | |
| Pin number | 1 pole | |
| Colour | yellow/green | |
| Version | 2-wire protective earth terminal | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 25 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
