870-951 | WAGO
Feed-through/feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 3 pole, 24 A, light gray, 870-951
Unit Price (€ / pc.)
4.1531 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.15 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1531 €
10 pcs.
3.8199 €
50 pcs.
3.4748 €
100 pcs.
3.1297 €
*incl. VAT plus shipping costs
Subject to prior sale

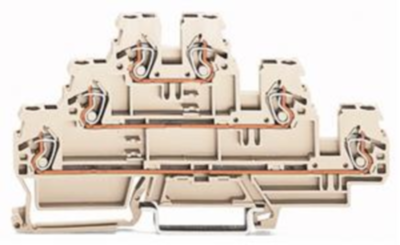

Triple-deck terminal block, 870-951, WAGO
Triple-deck terminal block, Through/through/through terminal block, L/L/L, suitable for Ex e II applications, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², CAGE CLAMP, 2,50 mm², light gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | feed-through/feed-through/feed-through terminal block | |
| Pin number | 3 pole | |
| Rated Voltage | 420 V | |
| Cable cross-section | 0.08-2.5 mm² | |
| Number of terminals | 6 | |
| Height | 106 mm | |
| Width | 5 mm | |
| Length | 52.5 mm | |
| Connection | spring-clamp connection | |
| Rated current | 24 A | |
| Colour | light gray | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 28 to 12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
