870-542/281-488 | WAGO

Double-decker component terminal with 2 diodes 1N4007, spring-clamp connection, 0.08-2.5 mm², 1 pole, 500 mA, gray, 870-542/281-488

Order No.: 45P2708
EAN: 4045454198695
MPN:
870-542/281-488
Series: 870

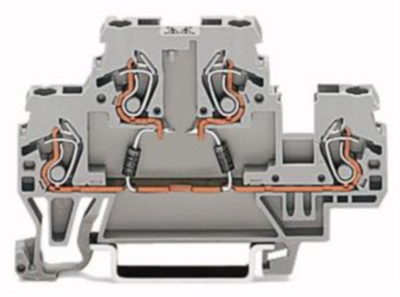

870-542/281-488 WAGO Series Terminals Image 1
870-542/281-488 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
7.0805 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.0805 €

Component terminal block, 870-542/281-488, WAGO

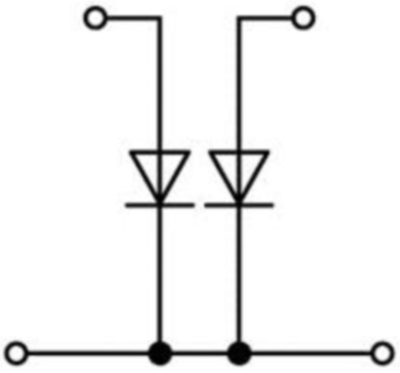

Component terminal block, double-deck, with 2 diodes 1N4007, Top anode, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Filter Property Value
Cable cross-section 0.08-2.5 mm²
Height 70 mm
Length 40 mm
Rated Voltage 250 V
Connection spring-clamp connection
Colour gray
Number of terminals 4
Version double-decker component terminal with 2 diodes 1N4007
Rated current 500 mA
Width 5 mm
Pin number 1 pole
AWG cross-section AWG 28 to 12
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
