870-523/281-579 | WAGO
Terminals with surge arrester, spring-clamp connection, 0.08-2.5 mm², 20 A, gray, 870-523/281-579
Unit Price (€ / pc.)
12.8163 € *
Standard delivery time from the manufacturer is: 3 Weeks

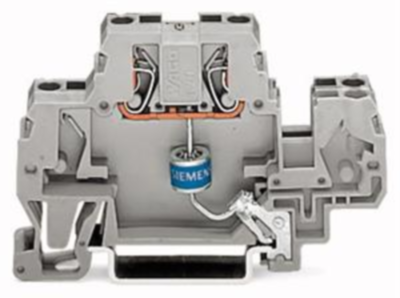

Component terminal block, 870-523/281-579, WAGO
Component terminal block, double-deck, with gas-filled surge arrester, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 24 V | |
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 28 to 14 | |
| Number of terminals | 2 | |
| Length | 70 mm | |
| Height | 40 mm | |
| Width | 10 mm | |
| Colour | gray | |
| Version | terminals with surge arrester | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
