870-137 | WAGO
4-wire/4-pin double level terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 25 A, yellow/green, 870-137
Unit Price (€ / pc.)
5.2955 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.30 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2955 €
10 pcs.
4.7719 €
*incl. VAT plus shipping costs
Subject to prior sale

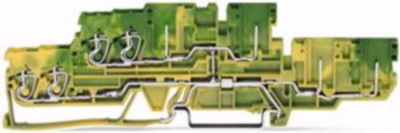

Double-deck carrier terminal block, 870-137, WAGO
4-conductor/4-pin, double-deck carrier terminal block, 4-conductor/4-pin ground terminal block, 2.5 mm², PE, internal commoning, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 2,50 mm², green-yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow/green | |
| Number of terminals | 4 | |
| Width | 5 mm | |
| Connection | spring-clamp connection | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 28 to 12 | |
| Pin number | 1 pole | |
| Rated Voltage | 500 V | |
| Version | 4-wire/4-pin double level terminal | |
| Cable cross-section | 0.08-2.5 mm² | |
| Height | 132.7 mm | |
| Length | 37.1 mm | |
| Rated current | 25 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
