870-131 | WAGO

2-wire/2-pin double level terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 16 A, 6 kV, gray, 870-131

Order No.: 45P2630
EAN: 4045454600211
MPN:
870-131
Series: 870

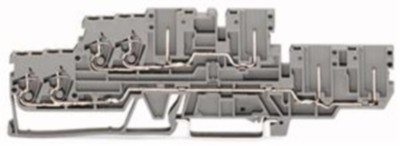

870-131 WAGO Series Terminals Image 1

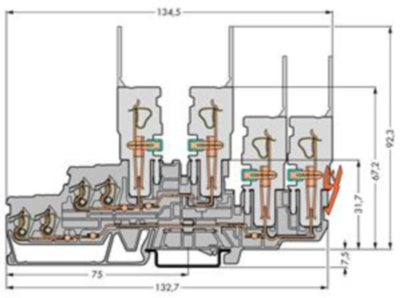

870-131 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
3.5105 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.51 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5105 €
10 pcs.
3.1535 €
*incl. VAT plus shipping costs
Subject to prior sale

Double-deck carrier terminal block, 870-131, WAGO

2-conductor/2-pin, double-deck carrier terminal block, Through/through terminal block, 2.5 mm², L/L, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Version 2-wire/2-pin double level terminal
Number of terminals 4
Pin number 2 pole
Cable cross-section 0.08-2.5 mm²
AWG cross-section AWG 28 to 12
Rated surge voltage 6 kV
Rated current 16 A
Rated Voltage 500 V
Degree of soiling 3
Length 37.1 mm
Width 5 mm
Height 132.7 mm
Connection spring-clamp connection
Colour gray
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
