859-796 | WAGO

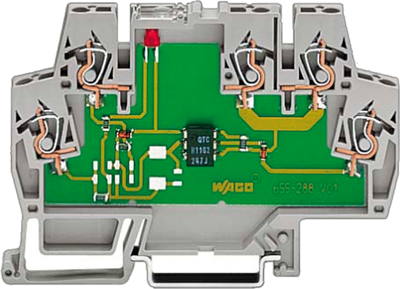

Optocoupler terminal block, spring-clamp connection, 0.08-2.5 mm², 2.5 kV, gray, 859-796
Unit Price (€ / pc.)
37.0804 € *
Available: 3 pcs.
Total Price:
37.08 € *
Price list
Quantity
Price per unit*
1 pcs.
37.0804 €
5 pcs.
33.3795 €
15 pcs.
31.0233 €
*incl. VAT plus shipping costs
Subject to prior sale
Optocoupler module, 859-796, WAGO
Optocoupler module, Nominal input voltage: 24 VDC, Output voltage range: 3 - 30 VDC, Limiting continuous current: 0.1 A, 2-wire connection, Railway, Frequency: 10 kHz, Module width: 6 mm, gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 14 | |
| Length | 91 mm | |
| Height | 56 mm | |
| Colour | gray | |
| Rated surge voltage | 2.5 kV | |
| Width | 6 mm | |
| Degree of soiling | 2 | |
| Connection | spring-clamp connection | |
| Version | optocoupler terminal | |
| Rated Voltage | 300 V | |
| Cable cross-section | 0.08-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365005 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
